Spare parts_ Manufacture and Supply

KC COTTRELL VIETNAM (KCVN): Beside working as EPC for Electrostatic Precipitator (Dry and Wet type), Bag Filter system as well as Flue Gas Desulfurization system,  we KCVN honor to supply Spare parts for all above system.

All spare parts were manufactured not only in UK, EU, Korea or China but also in local Vietnam.

Material standards are followed International standard (EU G7, JIS, GB, etc) and Viet Nam Standard or customer's RFQ ( Request of Quotation).

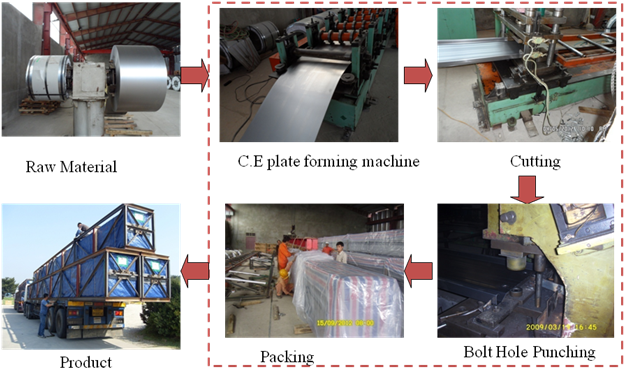

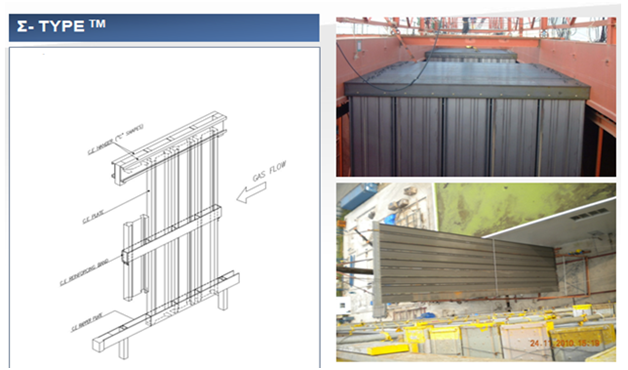

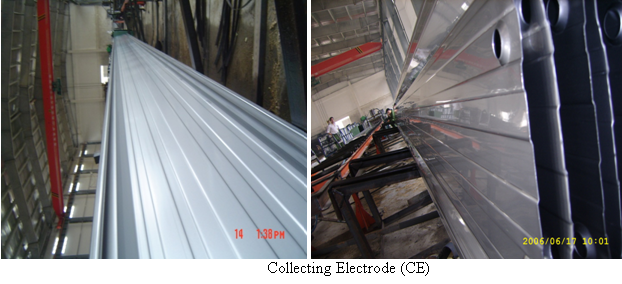

1. ESP Collecting Electrode (CE):

  • Manufacture: C-type: local Vietnam and K-type: Korea/China.
  • Dimention: Follow ESP size/ condition or customer's RFQ

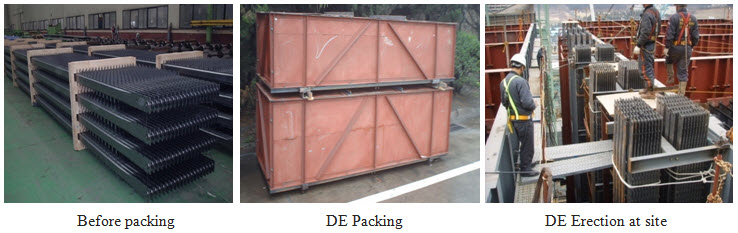

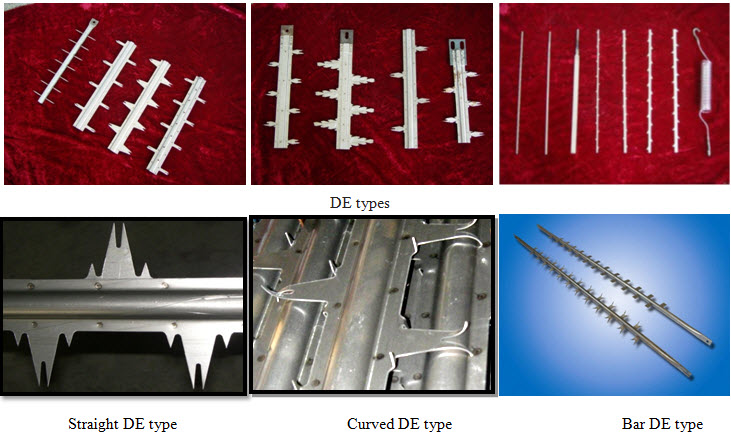

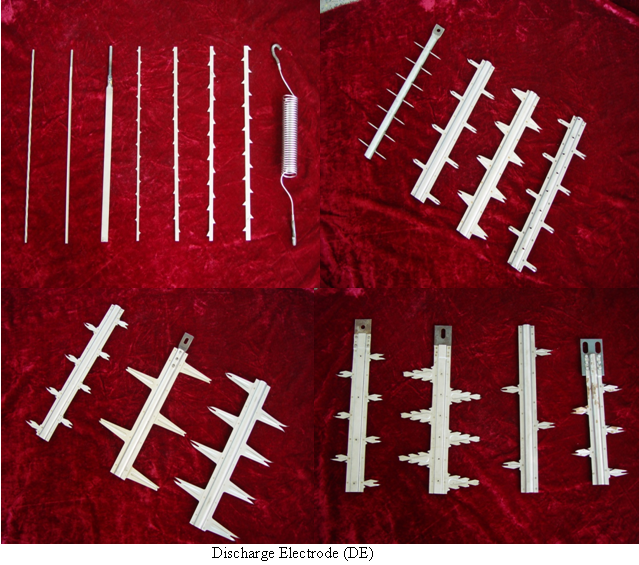

2. ESP_ Discharge Electrode (DE):

  • Manufacture: Korea and China
  • Dimention: Follow ESP size/ condition or customer's RFQ.

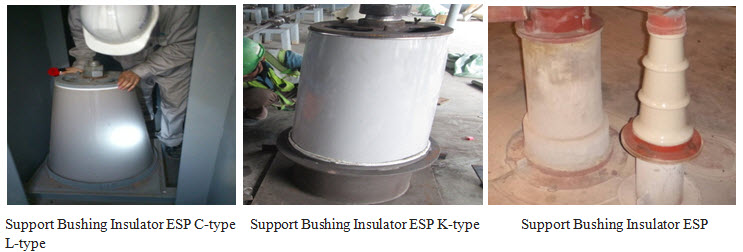

3. ESP_ Support Insulator/ Support Bushing

  • Manufacture: Korea/ China
  • Material: Reinforced Porcelain, FRP or other
  • Dimension: Followed ESP design or customer's RFQ
  • Operating Voltage: 72kV to 200kV

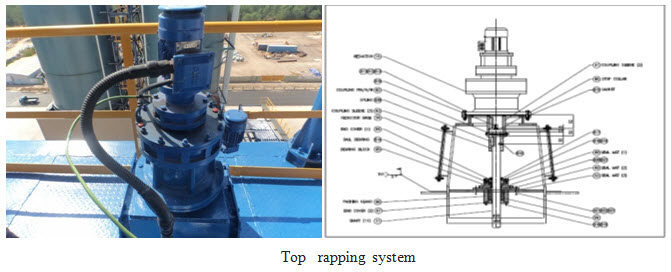

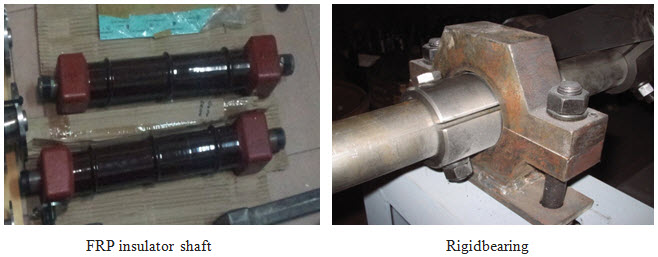

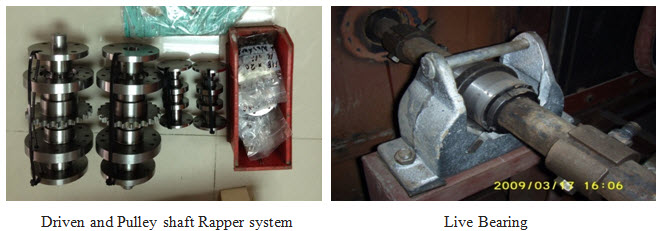

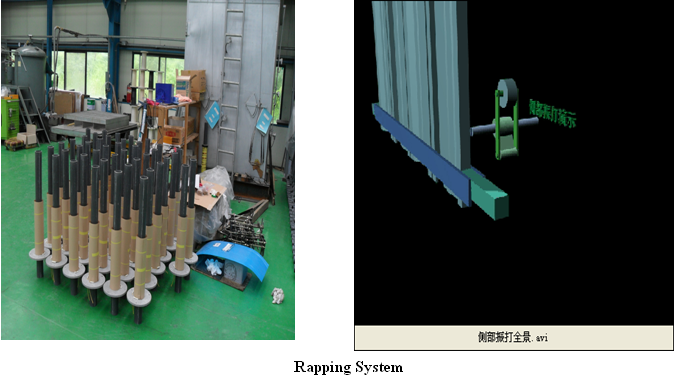

4. ESP_ Rapper system:

  • Manufacture: Korea, china or local Vietnam
  • Material: SPCC or other.

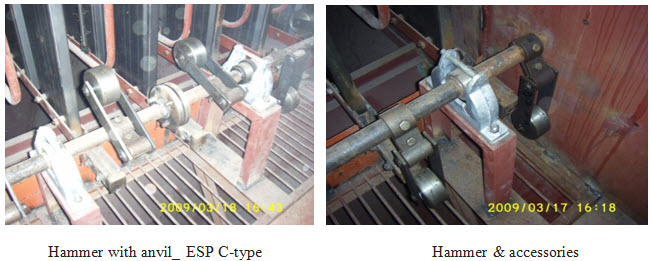

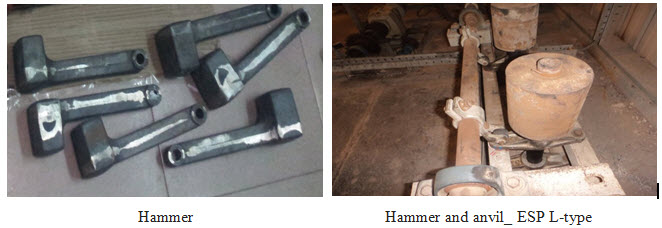

5. Hammer rapper and accessories:

  • Material: Casting iron, SPCC, etc
  • Manufacture: UK, Korea, China or local Vietnam
  • Dimension: Followed ESP design or customer's RFQ

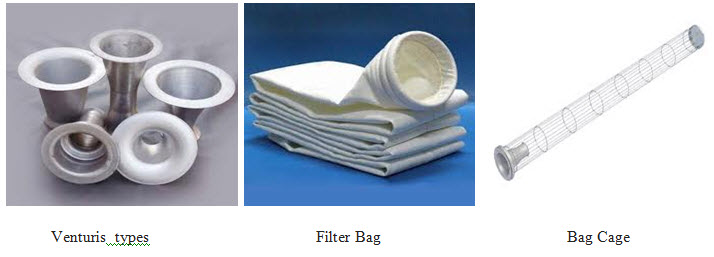

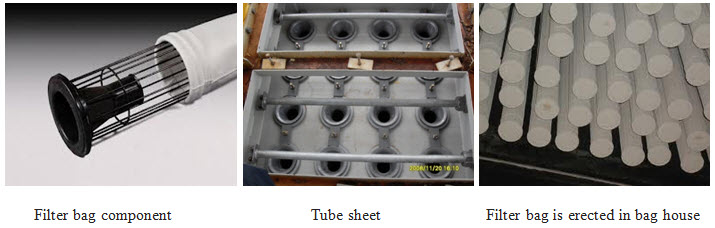

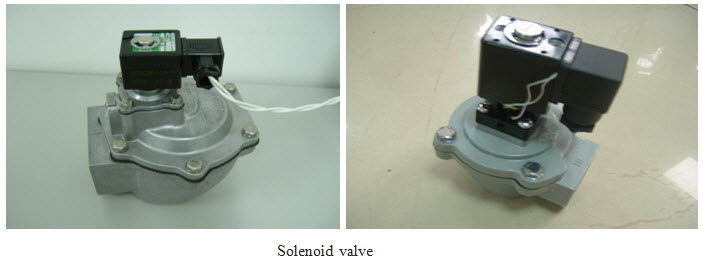

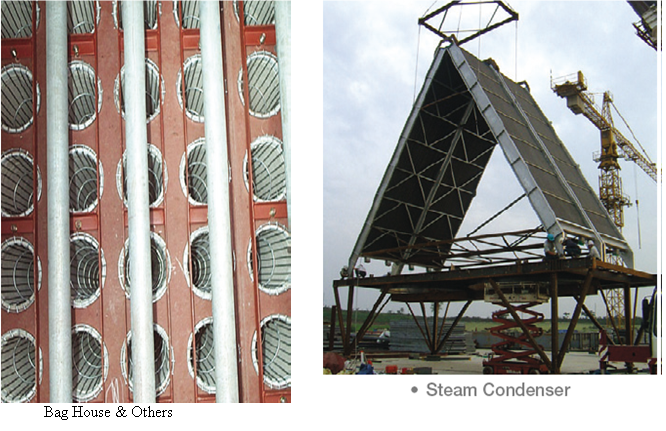

6. Bag Filter_ Filter bag, bag case, Valve and accessories:

  • Filter Bag material: Teflon, PP, etc.
  • Manufacture: UK, Korea, China.
  • Dimension: Followed Bag filter System Design or Customer's Request of Quotation

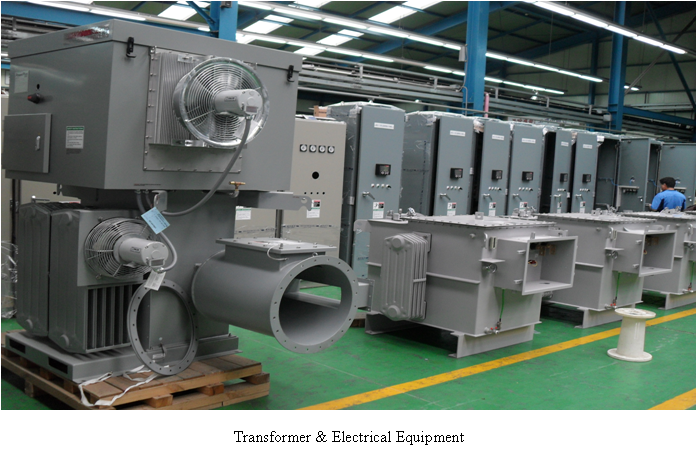

7. Transformer Rectifier – T/R

  • Manufacture: Korea, US

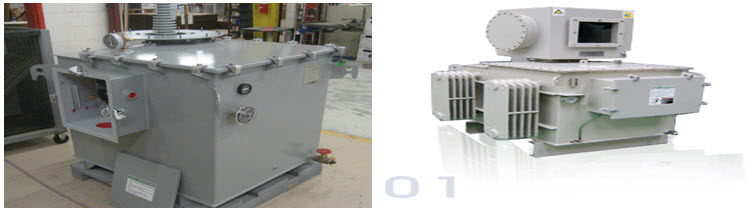

7.1 Transformer Rectifier Conventional (Máy biến áp chỉnh lưu thông thường

  • AC Input (điện áp xoay chiều đầu vào) : 1 phase, 380V. Frequency (Tần số) 50 Hz.
  • DC  output Voltage (điện áp 1 chiều đầu ra): chọn trong dải(range): 70 đến 110 kV.
  • DC  output Curent (dòng điện 1 chiều đầu ra) : 200 đến 1500 mA.
  • Power factor cos phi (hệ số công suất) : 0.63

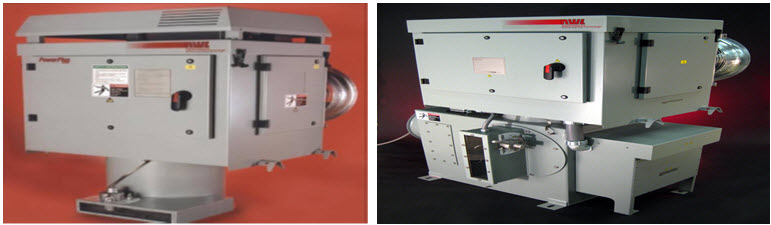

7.2  T/R Power Plus (Máy biến áp chỉnh lưu cao tần)

  • AC Input ( Điện áp xoay chiều đầu vào) : 3 phase, 380V. Frequency (Tần số) : 25kHZ.
  • DC Output Voltage (Điện áp 1 chiều đầu ra) : 70kV, 83kV, 100kV.
  • Power factor (Hệ số công suất) : 0.94

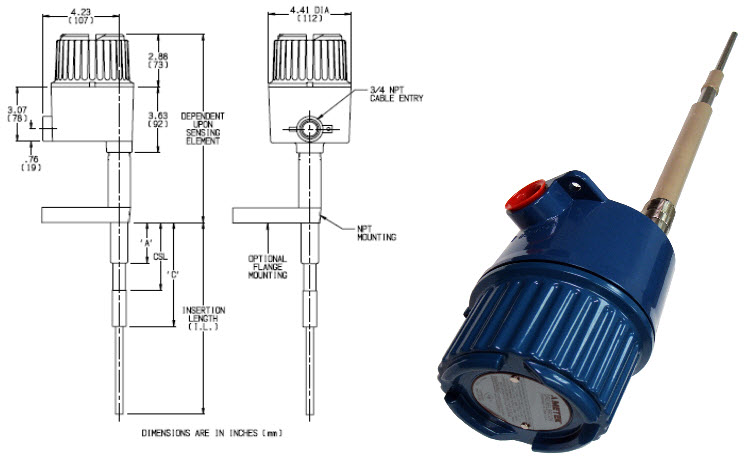

8. Level Switch :

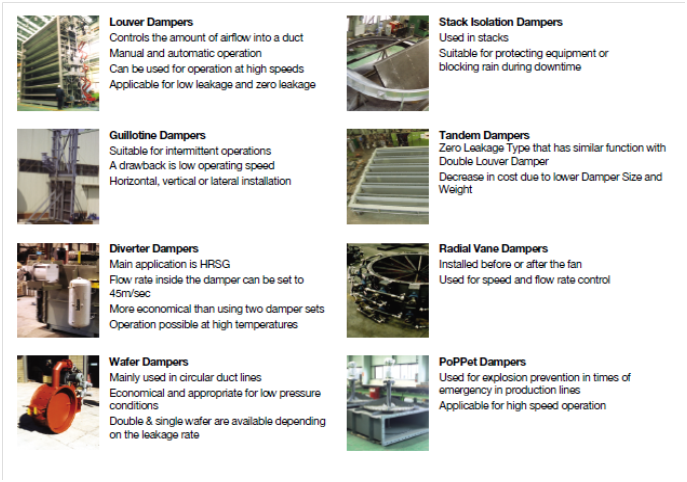

9. Damper

  • Sản xuất tại: UK, Korea, Gemany, China, Vietnam

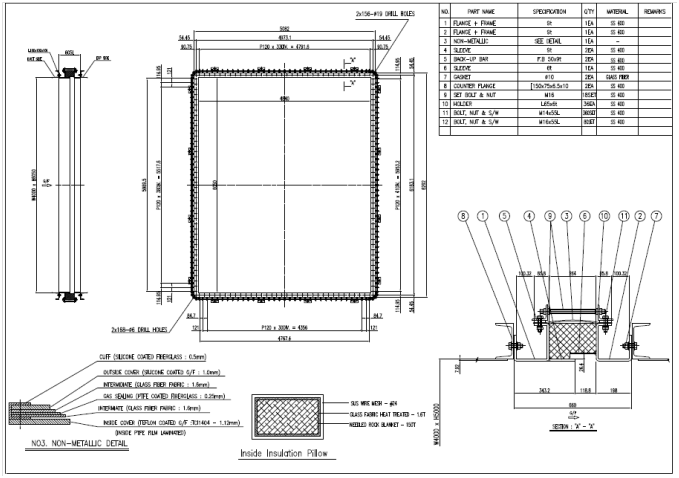

10. Expansion Joint



  • Sản xuất tại: UK, Korea, Gemany, China, Vietnam
